CompositePro

CompositePro is an advanced software tool for designing, analyzing, and simulating composite materials and laminates. It's designed for engineers, researchers, and manufacturers working with fiber-reinforced composites to optimize material performance and manufacturing processes.

NOTE : IT IS ALWAYS RECOMMENDED TO USE THE NEWEST VERSION OF SOFTWARE TO GET BETTER RESULTS

Key Features

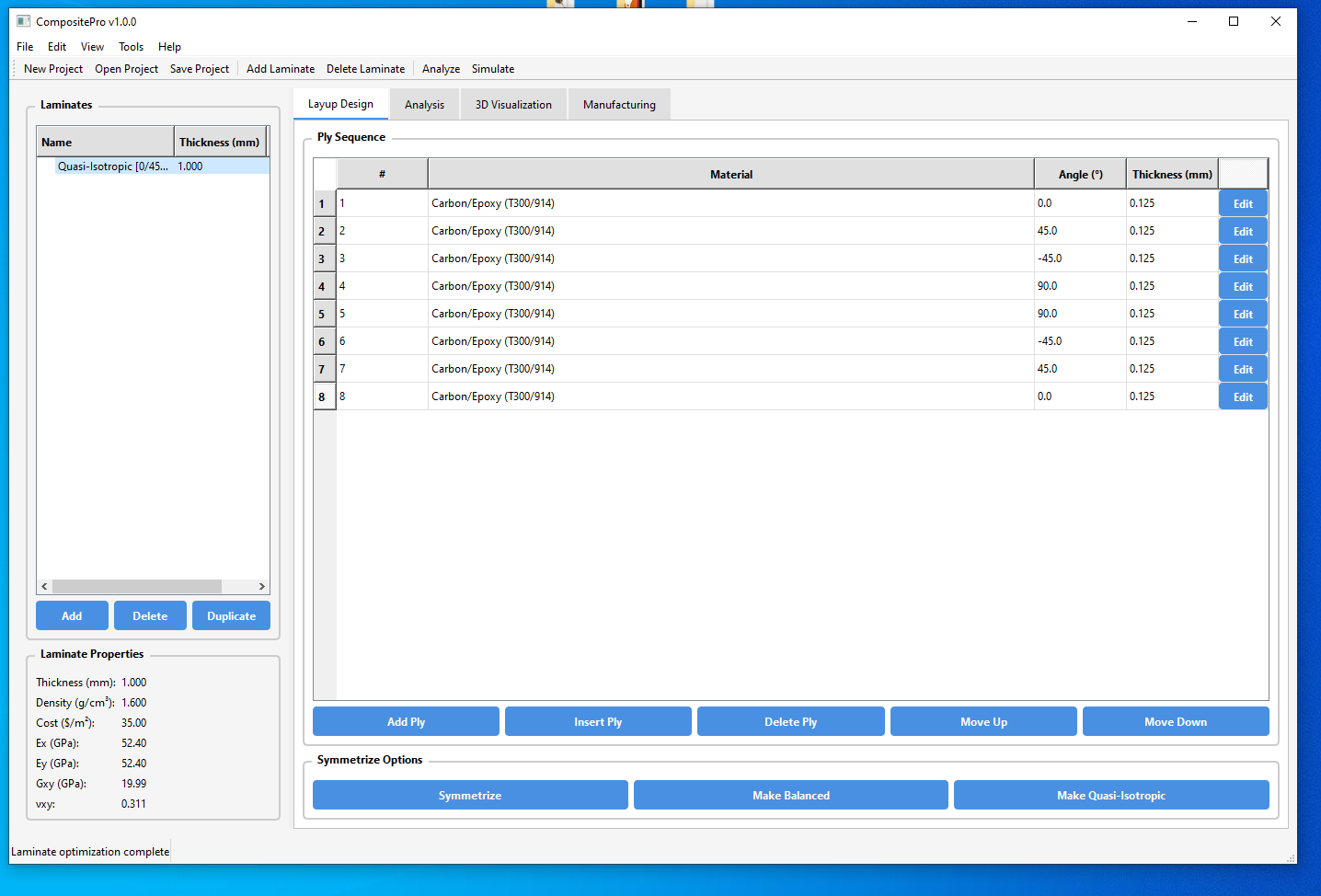

🏗️ Layup Design

• Create and manage composite laminates with multiple plies
• Define ply materials, orientation angles, and thickness
• Symmetrize laminates automatically
• Create balanced and quasi-isotropic laminates
• Reorder, insert, and delete plies with intuitive controls

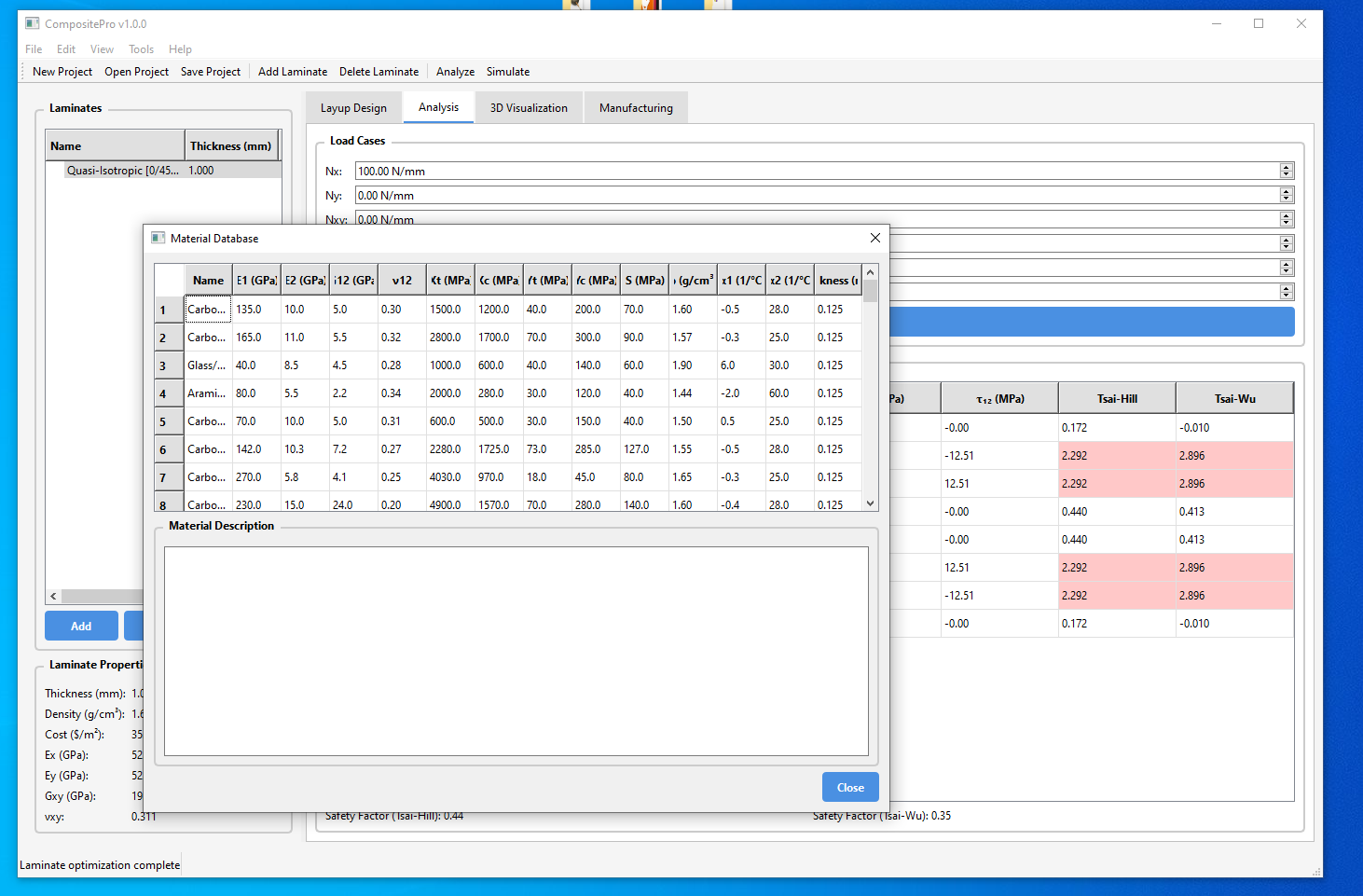

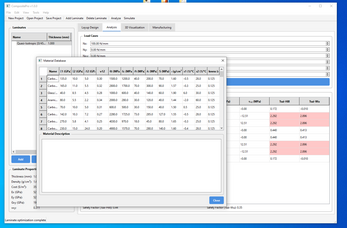

📊 Material Database

• Extensive library of 65+ composite materials including:
  • Carbon/Epoxy variants (T300, IM7, T700, T800, M55J, etc.)
  • Glass/Epoxy composites
  • Aramid/Epoxy (Kevlar, Twaron)
  • UHMWPE composites (Dyneema, Spectra)
  • Natural fibers (Flax, Hemp, Jute, Bamboo)
  • Ceramic matrix composites
  • Thermoplastic composites
  • Hybrid materials

🔬 Structural Analysis

• Classical Lamination Theory (CLT) implementation
• Calculate ABD matrices
• Failure analysis using:
  • Tsai-Hill criterion
  • Tsai-Wu criterion
• Safety factor calculations
• Stress-strain analysis per ply

🎨 3D Visualization

• Interactive 3D laminate visualization using PyVista/VTK
• Texture mapping showing fiber orientations
• Real-time visualization updates
• Camera controls and view reset

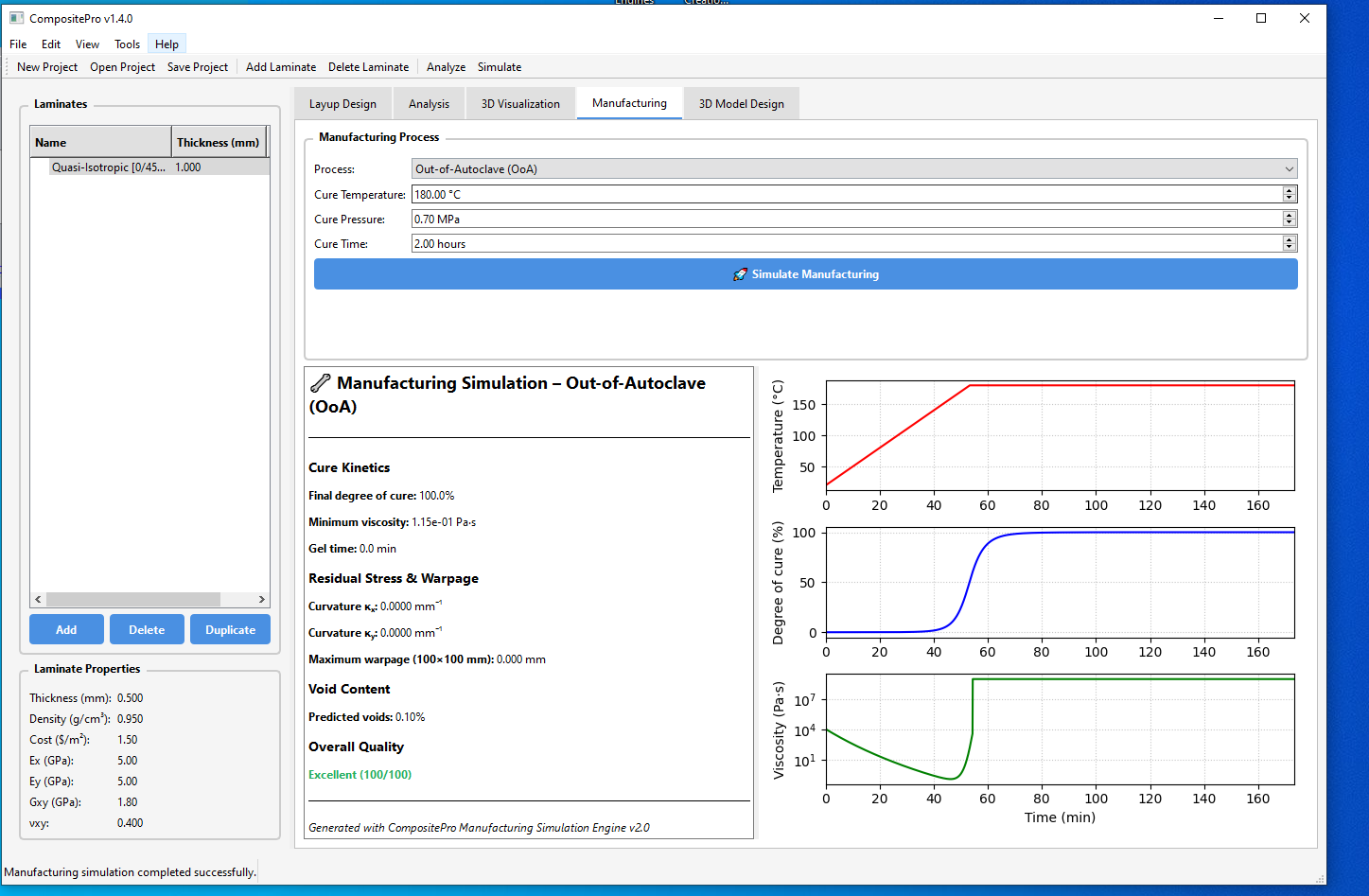

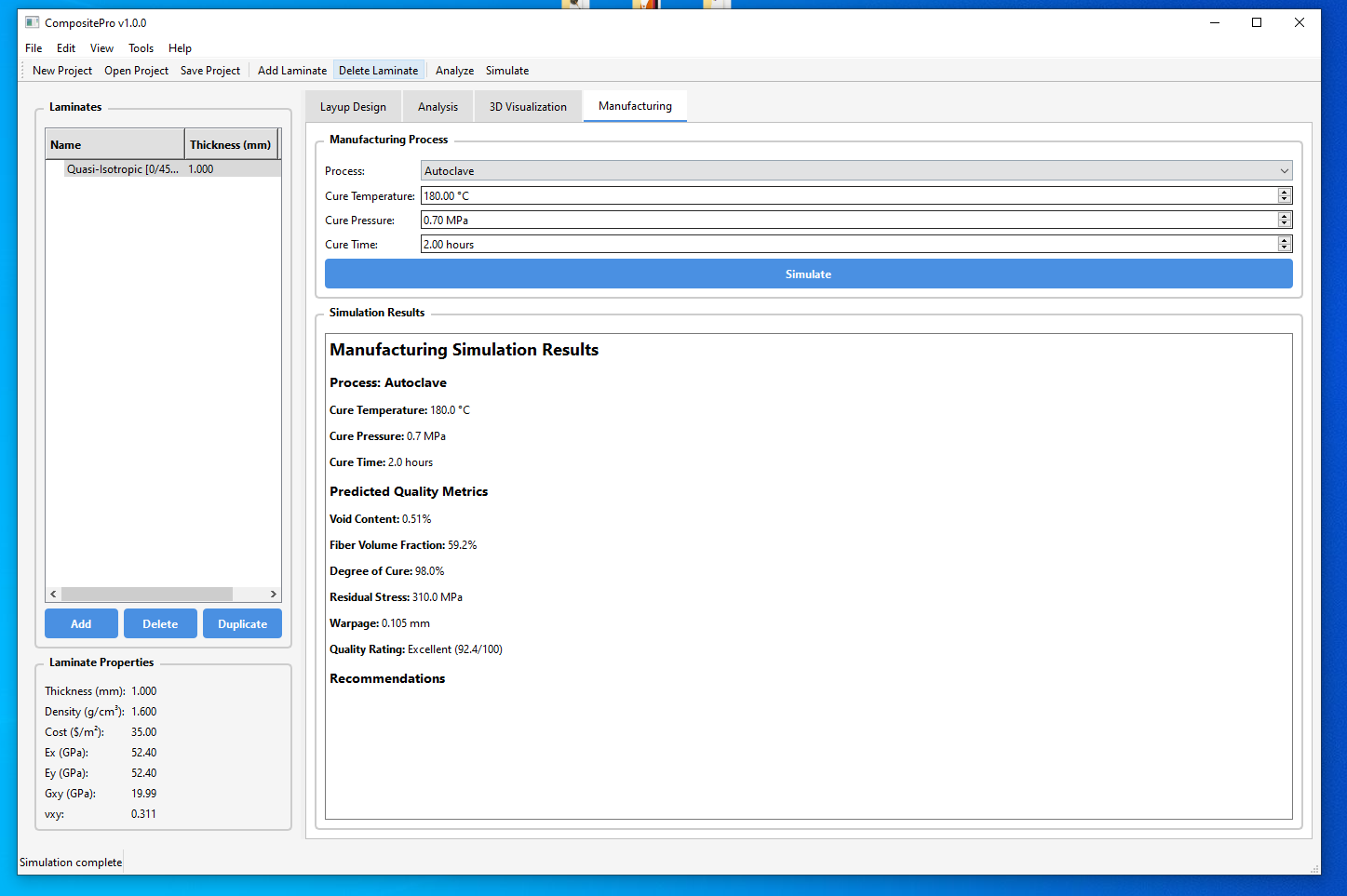

🏭 Manufacturing Simulation

• Multiple process simulation:
  • Autoclave
  • Resin Transfer Molding (RTM)
  • Vacuum Bagging
  • Out-of-Autoclave (OoA)
• Quality prediction:
  • Void content
  • Fiber volume fraction
  • Degree of cure
  • Residual stress
  • Warpage analysis

⚡ Optimization Tools

• Multi-objective optimization:
  • Maximize stiffness
  • Minimize weight
  • Minimize cost
  • Maximize strength
• Genetic algorithm and other optimization methods
• Constraint handling (thickness, cost limits)

💾 Project Management

• Save/load projects in custom .cpro format
• Export comprehensive HTML/PDF reports
• Multiple laminate management
• Duplicate and modify laminates

📈 Property Calculations

• Effective engineering constants:
  • Ex, Ey (Young's moduli)
  • Gxy (Shear modulus)
  • νxy (Poisson's ratio)
• Density and cost calculations
• Thermal expansion coefficients

NOTE : THIS SOFTWARE IS SUBJECTED TO EXPORT CONTROL LAWS AND ALL THE USERS ARE RESBONSIBLE FOR COMPLIANCE WITH THEIR LOCAL LAWS

Updated to Version 1.2 with alot of features

if you need any help with the software or faced any issues you can always ask for help in comments sections

We also provide support on our discord server: https://discord.gg/vVpeXp7mJb
